Sequence Charts¶

Introduction¶

This chapter describes the Sequence Chart and the Eventlog Table tools. Both of them display an eventlog file recorded by the OMNeT++ simulation kernel.

An eventlog file contains a log of messages sent during the simulation and the details of events that prompted their sending or reception. This includes both messages sent between modules and self-messages (timers). The user can control the amount of data recorded from messages, start/stop time, which modules to include in the log, and so on. The file also contains the topology of the model (i.e. the modules and their interconnections).

The Sequence Chart displays eventlog files in a graphical form, focusing on the causes and consequences of events and message sends. They help the user understand complex simulation models and assist with the correct implementation of the desired component behaviors. The Eventlog Table displays an eventlog file in a more detailed and direct way. It is in a tabular format, so that it can show the exact data. Both tools can display filtered eventlogs created via the Eventlog Tool filter command as described in the OMNeT++ Manual, by a third-party custom filter tool, or by the IDE’s in-memory filtering.

Using these tools, you will be able to easily examine every detail of your simulation back and forth in terms of simulation time or events. You will be able to focus on the behavior instead of the statistical results of your model.

Creating an Eventlog File¶

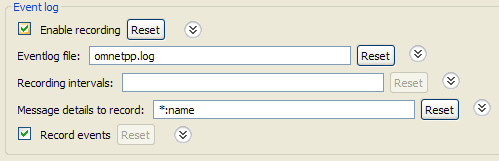

The INI File Editor in the OMNeT++ IDE provides a group of widgets in the Output Files section to configure automatic eventlog recording. To enable it, simply put a checkmark next to its checkbox, or insert the line

record-eventlog = true

into the INI file. Additionally, you can use the --record-eventlog command-line option or just click the record button on the Qtenv toolbar before starting the simulation.

By default, the recorded eventlog file will be put in the project’s results directory, with the name $configname-$runnumber.elog .

The ‘recording intervals’ and ‘record events’ configuration keys control which events will be recorded based on their simulation time and on the module where they occur. The ‘message details’ configuration key specifies what will be recorded from a message’s content. Message content will be recorded each time a message gets sent.

The amount of data recorded will affect the eventlog file size, as well as the execution speed of the simulation. Therefore, it is often a good idea to tailor these settings to get a reasonable tradeoff between performance and details.

Sequence Chart¶

This section describes the Sequence Chart in detail, focusing on its features without a particular example.

The Sequence Chart is divided into three parts: the top gutter, the bottom gutter, and the main area. The gutters show the simulation time while the main area displays module axes, events, and message sends. The chart grows horizontally with simulation time and vertically with the number of modules. Module axes can optionally display enumerated or numerical vector data.

There are various options that control how and what the Sequence Chart displays. Some of these are available on the toolbar, while others are accessible only from the context menu.

Legend¶

Graphical elements on the Sequence Chart represent modules, events, and messages, as listed in the following table.

	simple module axis
	compound module axis
	axis with attached vector data
	module full path as axis label
	(hollow circle) initialization event
	(green disk) self-message processing event
	(red disk) message processing event
	event number
	(blue arrow, arched) self-message
	(blue arrow) message send
	(green dotted arrow) message reuse
	(brown dotted arrow) method call
	(arrow with a dashed segment) message send that goes far away; split arrow
	(arrow with zigzag) virtual message send; zigzag arrow
	(blue parallelogram) transmission duration; reception at start
	(blue parallelogram) transmission duration; reception at end
	(blue strips) split transmission duration; reception at start
	(blue strips) split transmission duration; reception at end
	(blue letters) message name
	(brown letters) method name
	(gray background) zero simulation time region
	(dashed gray line) simulation time hairline

Timeline¶

Simulation time may be mapped onto the horizontal axis in various ways; linear mapping is only one of the ways. The reason for having multiple mapping modes is that intervals between interesting events are often of different magnitudes (e.g. microsecond timings in a MAC protocol versus multi-second timeouts in higher layers), which is impossible to visualize using a linear scale.

The available timeline modes are:

• Linear – the simulation time is proportional to the distance measured in pixels.

• Event number – the event number is proportional to the distance measured in pixels.

• Step – the distance between subsequent events, even if they have non-subsequent event numbers, is the same.

• Nonlinear – the distance between subsequent events is a nonlinear function of the simulation time between them. This makes the figure compact even if there are several magnitudes difference between simulation time intervals. On the other hand, it is still possible to decide which interval is longer and which one is shorter.

• Custom nonlinear – like nonlinear. This is useful in those rare cases when the automatic nonlinear mode does not work well. The best practice is to switch to Nonlinear mode first and then to Custom nonlinear, so that the chart will continuously refresh as the parameters change. At the extreme, you can set the parameters so that the nonlinear mode becomes equivalent to linear mode or step mode.

You can switch between timeline modes using the button on the toolbar or from the context menu.

Zero Simulation Time Regions¶

It is quite common in simulation models for multiple events to occur at the same simulation time, possibly in different modules. A region with a gray background indicates that the simulation time does not change along the horizontal axis within the area, thus all events inside it have the same simulation time associated with them.

Module Axes¶

The Sequence Chart’s vertical axis corresponds to modules in the simulation. By default, each simple module is displayed on a separate horizontal axis, and events that occurred in that module are shown as circles on it. A compound module is represented with a double line, and it will display events from all contained simple modules, except internal events and those that have their own axes displayed. An event is internal to a compound module if it only processes a message from, and sends out messages to, other modules inside.

It is not uncommon for some axes to not have any events at all. These axes would waste space by occupying some place on the screen, so by default, they are omitted from the chart unless the Show Axes Without Events option is turned on. The discovery process is done lazily as you navigate through the chart, and it may add new axes dynamically as soon as it turns out that they actually have events.

Module axes can be reordered with the option Axis Ordering Mode . Ordering can be manual or sorted by module name, module ID, or by minimizing the total number of axes that arrows cross.

Gutter¶

The upper and lower edges of the Sequence Chart show a gutter that displays the simulation time. The left side of the top gutter displays a time prefix value, which should be added to each individual simulation time shown at the vertical hairlines. This reduces the number of characters on the gutter and allows easier recognition of simulation time changes in the significant digits. The right side of the figure displays the simulation time range that is currently visible within the window.

Events¶

Events are displayed as filled circles along the module axes. A green circle represents the processing of a self-message, while a red circle is an event caused by receiving a message from another module. The event with event number zero represents the module initialization phase and may spread across multiple module axes because the simulation kernel calls each module during initialization. This event is displayed with a white background.

Event numbers are displayed below and to the right of their corresponding events and are prefixed with ‘#’. Their colors change according to their events’ colors.

Messages¶

The Sequence Chart represents message sends with blue arrows. Vertically, the arrow starts at the module that sent the message and ends at the module that processed the message. Horizontally, the start and end points of the arrow correspond to the sender and receiver events. The message’s name is displayed near the middle of the arrow, but not exactly in the middle to avoid overlapping with other names between the same modules.

Sometimes, when a message arrives at a module, it simply stores it and later sends the exact same message out. The events where the message arrived and where the message was actually sent are in a so-called “message reuse” relationship. This is represented by a green dotted arrow. These arrows are not shown by default because timer self-messages are usually reused continuously. Showing these arrows would add unnecessary complexity to the chart and make it hard to understand. To show and hide these arrows, use the button Show Reuse Messages on the toolbar.

Sometimes, depending on the zoom factor, a message send goes far away on the chart. In this case, the line is split into two smaller parts that are displayed at the two ends pointing towards each other, but without a continuous line connecting them. At one end of both arrow pieces is a dotted line while at the other end is a solid line. The solid line always points exactly to or from the event to which it is connected. The other line, which is dotted, either specifies the module where the arrow starts or ends, or in the case of a self-message, it points toward the other arrow horizontally.

Displaying Module State on Axes¶

It is possible to display module state on an axis. The axis is then rendered as a colored strip that changes color every time the module state changes. The data is taken from an output vector in an output vector file, normally recorded by the simulation together with the eventlog file.

To attach an output vector to an axis, right-click the desired axis and select Attach Vector to Axis from the context menu. You will be prompted for an output vector file and for a vector in the file. If the vector is of type enum (that is, it has metadata attached that assigns symbolic names to values, e.g., IDLE for 0, TRANSMIT for 1, etc.), then the chart will display symbolic names inside the strip; otherwise, it will display the values as numbers. The background coloring for the strip is automatic.

Zooming¶

To zoom in or out horizontally along the timeline, use the Zoom In and Zoom Out buttons on the toolbar. To decrease or increase the distance between the axes, use the Increase/Decrease Spacing commands.

Navigation¶

To scroll through the Sequence Chart, use either the scroll bars, drag with the left mouse button, or scroll with the mouse wheel using the Shift modifier key for horizontal scroll.

There are also navigation options to go to the previous Shift+LEFT or next Shift+RIGHT event in the same module.

Similar to navigating in the Eventlog Table, to go to the cause event, press Ctrl+LEFT. To go to the arrival of a message send, press Ctrl+RIGHT while an event is selected.

Tooltips¶

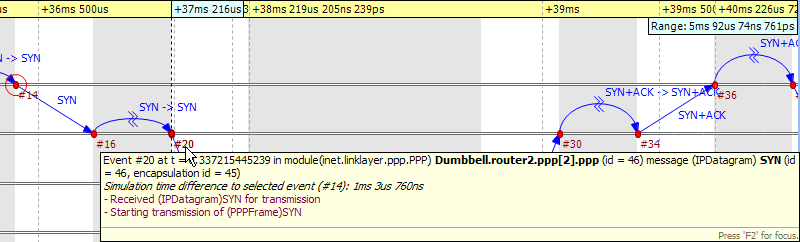

The Sequence Chart displays tooltips for axes, events, message sends, and reuses. When a tooltip is shown for any of the above, the chart will highlight the corresponding parts. Sometimes, when the chart is zoomed out, it might show a complex tooltip immediately because there are multiple items under the mouse.

Bookmarks¶

Just like the Eventlog Table, the Sequence Chart also supports bookmarks to make navigation easier. Bookmarks are saved for the files rather than the various editors; therefore, they are shared between them. The chart highlights bookmarked events with a circle around them, similar to primary selection but with a different color.

Exporting¶

The Sequence Chart supports exporting continuous parts into SVG format for documentation purposes. This function is available from the context menu . You can export the whole Sequence Chart, a region between two selected events, or the currently visible area.

Associated Views¶

When you open an eventlog file in the Sequence Chart editor, it will automatically open the Eventlog Table View with the same file. If you select an event on the Sequence Chart editor, then the Eventlog Table View will jump to the same event, and vice versa. This interconnection makes navigation easier, and you can immediately see the details of the selected event’s raw data.

Filtering¶

You can also filter the contents of the Sequence Chart. This actually means that some of the events are not displayed on the chart, so that the user can focus on the relevant parts. When filtering is turned on (displayed in the status line), some of the message arrows might have a filter sign (a double zigzag crossing the arrow line’s center). Such a message arrow means that there is a message going out from the source module, which after processing in some other filtered-out modules, reaches the target module. The message name of the arrow in this case corresponds to the first and the last message in the chain that was filtered out.

When a module filter is used, it will determine which modules will have axes. If the events that occurred in a module are completely filtered out, then the Sequence Chart will not display the superfluous axis belonging to that module. This reduces the number of axes and makes it easier to understand the figure.

Events may not have subsequent event numbers, which means that the events in between have been filtered out. At the extreme, the chart may even be empty, meaning that there are no matching events at all.

To filter the Sequence Chart, open the Filter Dialog using the filter button on the toolbar. You can also filter from the context menu using the shortcuts provided for events and message sends currently under the mouse.

Eventlog Table¶

This section describes the Eventlog Table in detail, focusing on its features without a particular example.

The Eventlog Table has one row per line in the eventlog file. It has three columns. The first two are called event number and simulation time respectively. They show the values corresponding to the simulation event where the line was recorded. The third column, called details, contains the actual data, which varies for each line kind. The different kinds of lines can be easily recognized by their icons. Some lines, such as sending a message through a sequence of gates, relate to each other and are indented so that the user can recognize them more easily.

There are various options that control how and what the Eventlog Table displays. Some of these are available on the toolbar, while others are accessible only from the context menu.

Display Mode¶

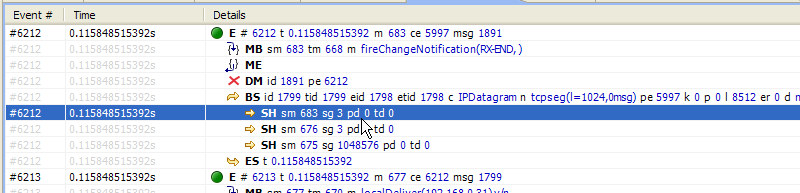

The eventlog file content may be displayed in two different notations. The Raw data notation shows exactly what is present in the file.

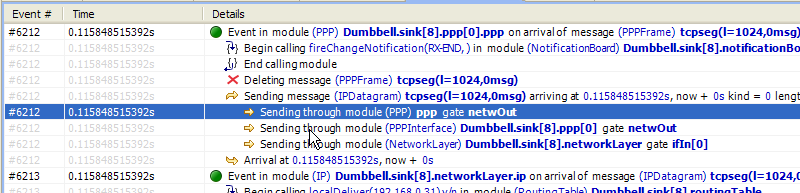

The Descriptive notation, after some preprocessing, displays the log file in a readable format. It also resolves references and types so that less navigation is required to understand what is going on. To switch between the two, use the Display Mode button on the toolbar or the context menu.

Name Mode¶

There are three different ways to display names in the Eventlog Table; it is configurable with the Name Mode option. Full path and full name show what you would expect. The smart mode uses the context of the line to decide whether a full path or a full name should be displayed. For each event line, this mode always displays the full path. For all other lines, if the name is the same as the enclosing event’s module name, then it shows the full name only. This choice makes lines shorter and allows for faster reading.

Type Mode¶

The option called Type Mode can be used to switch between displaying the C++ class name or the NED type name in parentheses before module names. This is rarely used, so it is only available from the context menu.

Line Filter¶

The Eventlog Table may be filtered by using the Line Filter button on the toolbar. This option allows filtering for lines with specific kinds. There are some predefined filters.

You can also provide a custom filter pattern, referring to fields present in Raw mode, using a match expression. The following example is a custom filter that will show message sends where the message’s class is AirFrame.

BS and c(AirFrame)

Please refer to the OMNeT++ Manual for more details on match expressions.

Navigation¶

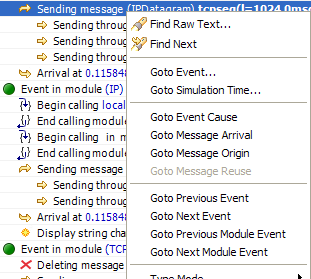

You can navigate using your keyboard and mouse just like in any other table. There are a couple of non-standard navigation options in the context menu, which can also be used with the keyboard.

The simplest are the Goto Event and the Goto Simulation Time, both of which simply jump to the designated location.

There are navigation options for going to the previous Alt+UP or next Alt+DOWN event in general, and to go to the previous Shift+UP or next Shift+DOWN event in the same module.

Some of the navigation options focus on the causes of events and consequences of message sends. To go to the cause event, press Ctrl+UP. To go to the arrival of a message send, press Ctrl+DOWN, after selecting the message being sent.

Finally, there are navigation options for message reuse relationships. You can go to the original event of a message from the line where it was being reused. In the other direction, you can go to the reused event of a message from the event where it was received. These options are enabled only if they actually make sense for the current selection.

Selection¶

The Eventlog Table uses multiple selection even though most of the user commands require single selection.

Searching¶

For performance reasons, the search function works directly on the eventlog file and not the text displayed in the Eventlog Table. It means that some static text present in Descriptive mode cannot be found. Usually, it is easier to figure out what to search for in Raw mode, where the eventlog file’s content is directly displayed. The search can work in both directions, starting from the current selection, and may be case insensitive. To repeat the last search, use the Find Next command.

Bookmarks¶

For easier navigation, the Eventlog Table supports navigation history. This is accessible from the standard IDE toolbar just like for other kinds of editors. It works by remembering each position where the user stayed more than 3 seconds. The navigation history is temporary and thus it is not saved when the file is closed.

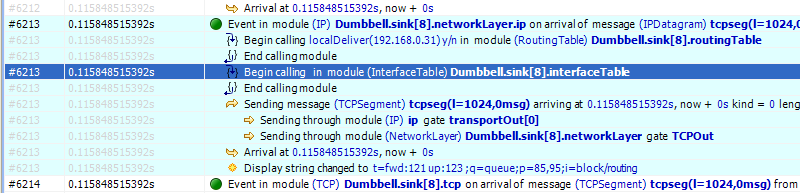

Persistent bookmarks are also supported, and they can be added from the context menu. A Bookmarked event is highlighted with a different background color.

To jump to a bookmark, use the standard Bookmark View (this is possible even after restarting the IDE).

Tooltips¶

Currently, only the message send lines have tooltips. If message detail recording was configured for the simulation, then a tooltip will show the recorded content of a message send over the corresponding line.

Associated Views¶

When you open an eventlog file in the Eventlog Table editor, it will automatically open the Sequence Chart View with the same file. If you select an event on the Eventlog Table editor, then the Sequence Chart View will jump to the same event, and vice versa. This interconnection makes navigation easier, and you can immediately see the cause and effect relationships of the selected event.

Filtering¶

If the Eventlog Table displays a filtered eventlog, then subsequent events may not have subsequent event numbers. This means that the events in between have been filtered out. At the extreme, the table may even be empty, which means that there are no matching events at all.

Filter Dialog¶

The content of an eventlog can be filtered within the OMNeT++ IDE. This is on-the-fly filtering as opposed to the file content filtering provided by the Eventlog tool. To use on-the-fly filtering, open the filter configuration dialog with the button on the toolbar, enable some of the range, module, message, or trace filters, set the various filter parameters, and apply the settings. The result is another eventlog, resident in memory, that filters out some events.

In-memory, on-the-fly filtering means that the filter’s result is not saved into an eventlog file, but it is computed and stored within memory. This allows rapid switching between different views of the same eventlog within both the Sequence Chart and the Eventlog Table.

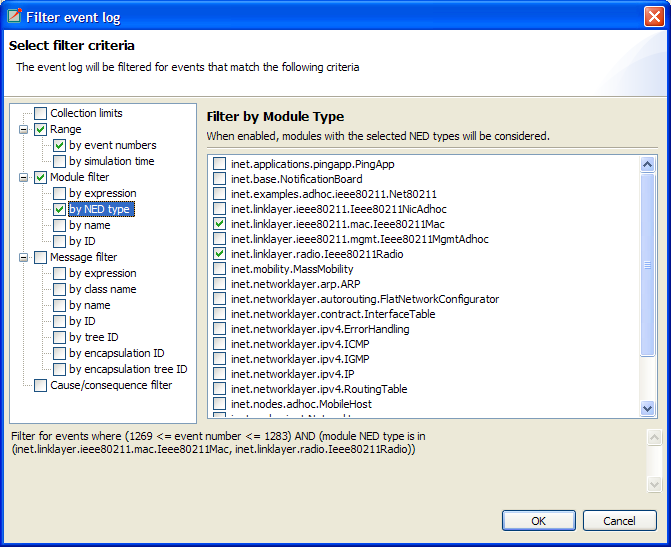

The filter configuration dialog shown in Fig. 137 has many options. They are organized into a tree with each part restricting the eventlog’s content. The individual filter components may be turned on and off independent of each other. This allows remembering the filter settings even if some of them are temporarily unused.

The combination of various filter options might be complicated and hard to understand. To make it easier, the Filter Dialog automatically displays the current filter in a human-readable form at the bottom of the dialog.

Range Filter¶

This is the simplest filter, which filters out events from the beginning and end of the eventlog. It might help to reduce the computation time dramatically when defining filters that would otherwise be very expensive to compute for the whole eventlog file.

Module Filter¶

With this kind of filter, you can filter out events that did not occur in any of the specified modules. The modules that will be included in the result can be selected by their NED type, full path, module ID, or by a match expression. The expression may refer to the raw data present in the lines marked with ‘MC’ in the eventlog file.

Message Filter¶

This filter is the most complicated one. It allows filtering for events that either process or send specific messages. The messages can be selected based on their C++ class name, message name, various message IDs, and a match expression. The expression may refer to the raw data present in the lines marked with ‘BS’ in the eventlog file.

There are four different message IDs to filter, each with different characteristics. The most basic one is the ID, which is unique for each constructed message, independent of how it was created. The tree ID is special because it gets copied over when a message is created by copying (duplicating) another. The encapsulation ID is different in that it gives the ID of the innermost encapsulated message. Finally, the encapsulation tree ID combines the two by providing the innermost encapsulated message’s tree ID.

Tracing Causes/Consequences¶

The trace filter allows filtering for causes and consequences of a particular event specified by its event number. The cause/consequence relation between two events means that there is a message send/reuse path from the cause event to the consequence event. If there was a message reuse in the path, then the whole path is considered to be a message reuse itself.

Collection Limits¶

When an in-memory filter is applied to an eventlog, it does not only filter out events, but it also provides automatic discovery for virtual message sends. It means that two events far away and not directly related to each other might have a virtual message send (or reuse) between them. Recall that there is a virtual message send (or reuse) between two events if and only if there is a path of message sends (or reuses) connecting the two.

The process of collecting these virtual message dependencies is time-consuming and thus has to be limited. There are two options. The first one limits the number of virtual message sends collected per event. The other one limits the depth of cause/consequence chains during collection.

Long-Running Operations¶

Sometimes, computing the filter’s result takes a lot of time, especially when tracing causes/consequences without specifying proper range limits in terms of event numbers or simulation times. If you cancel a long-running operation, you can go back to the Filter Dialog to modify the filter parameters, or simply turn the filter off. To restart drawing, use the refresh button on the toolbar.

Other Features¶

Both the Sequence Chart and the Eventlog Table tools can be used as editors and also as views. The difference between an editor or a view is quite important because there is only at most one instance of a view of the same kind. It means that even if multiple eventlog files are open in Sequence Chart editors, there is no more than one Eventlog Table view shared between them. This single view will automatically display the eventlog file of the active editor. It will also remember its position and state when it switches among editors. For more details on editors and views, and their differences, please refer to the Eclipse documentation.

It is possible to open the same eventlog file in multiple editors and to navigate to different locations or use different display modes or filters in a location. Once an eventlog is open in an editor, you can use the Window ‣ New Editor to open it again.

Settings¶

There are various settings for both tools that affect the display, such as display modes, content position, filter parameters, etc. These user-specified settings are automatically saved for each file and are reused whenever the file is revisited. The per-file settings are stored under the OMNeT++ workspace in the directory .metadata.pluginsorg.eclipse.core.resources.projects<project-name>.

Large File Support¶

Since an eventlog file might be several gigabytes, both tools are designed in a way that allows for efficient displaying of such a file without requiring large amounts of physical memory to load it at once. As you navigate through the file, physical memory is filled up with the content lazily. Since it is difficult to reliably identify when the system is getting low on physical memory, it is up to the user to release the allocated memory when needed. This operation, although usually not required, is available from the context menu as Release Memory. It does not affect the user interface in any way.

The fact that the eventlog file is loaded lazily and optionally filtered also means that the exact number of lines and events it contains cannot be easily determined. This affects the way scrollbars work in the lazy directions: horizontal for the Sequence Chart and vertical for the Eventlog Table. These scrollbars act as a non-linear approximation in that direction. For the most part, the user will be unaware of these approximations unless the file is really small.

Viewing a Running Simulation’s Results¶

Even though the simulation kernel keeps the eventlog file open for writing while the simulation is running, it may also be open in the OMNeT++ IDE simultaneously. Both tools can be guided by pressing the END key to follow the eventlog’s end as new content is appended to it. If you pause the simulation in the runtime environment, then after a few seconds the tools will refresh their content and jump to the very end. This process makes it possible to follow the simulation step-by-step on the Sequence Chart.

Caveats¶

Sometimes, drawing the Sequence Chart may take a lot of time. Zooming out too much, for example, might result in slow response times. A dialog might pop up telling the user that a long-running eventlog operation is in progress. You can safely cancel these operations at any time you like or just wait until they finish. To restart the rendering process, simply press the refresh button on the toolbar. Before refreshing, it is a good idea to revert to some defaults (e.g. default zoom level) or revert the last changes (e.g. navigate back, turn filter off, etc.).

Examples¶

This section will guide you through the use of the Sequence Chart and Eventlog Table tools, using example simulations from OMNeT++ and the INET Framework. Before running any of the simulations, make sure that eventlog recording is enabled by adding the line

record-eventlog = true

to the omnetpp.ini file in the simulation’s directory. To open the generated eventlog in the OMNeT++ IDE, go to the example’s results directory in the Resource Navigator View and double-click the log file. By default, the file will open in the Sequence Chart.

Tictoc¶

The Tictoc example is available in the OMNeT++ installation under the directory samples/tictoc. Tictoc is the most basic example in this chapter and it provides a quick overview of how to use and understand the Sequence Chart.

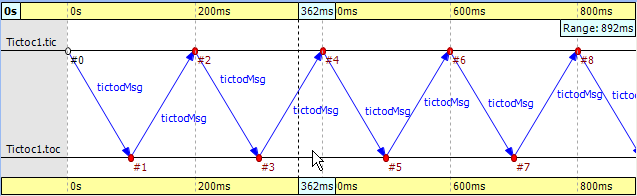

Start the simulation and choose the simplest configuration, ‘Tictoc1,’ which specifies only two nodes called ‘tic’ and ‘toc.’ During initialization, one of the nodes will send a message to the other. From then on, every time a node receives the message, it will simply send it back. This process continues until you stop the simulation. In Fig. 138, you can see how this is represented on a Sequence Chart. The two horizontal black lines correspond to the two nodes and are labeled ‘tic’ and ‘toc.’ The red circles represent events, and the blue arrows represent message sends. It is easy to see that all message sends take 100 milliseconds and that the first sender is the node ‘tic.’

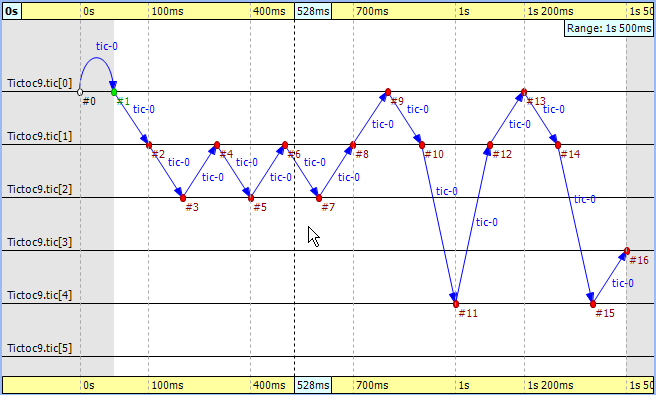

In the next Tictoc example, there are six nodes tossing a message around until it reaches its destination. To generate the eventlog file, restart the simulation and choose the configuration ‘Tictoc9.’ In Fig. 139, you can see how the message goes from one node to another, starting from node ‘0’ and passing through it twice more until it finally reaches its destination, node ‘3.’ The chart also shows that this example, unlike the previous one, starts with a self-message instead of immediately sending a message from initialize to another node.

Let us demonstrate with this simple example how filtering works with the Sequence Chart. Open the Filter Dialog with the toolbar button and put a checkmark for node ‘0’ and ‘3’ on the Module filter ‣ by name panel, and apply it. The chart now displays only two axes that correspond to the two selected nodes. Note that the arrows on this figure are decorated with zigzags, meaning that they represent a sequence of message sends. Such arrows will be called virtual message sends in the rest of this chapter. The first two arrows show the message returning to node ‘0’ at event #9 and event #13, and the third shows that it reaches the destination at event #16. The events where the message was in between are filtered out.

FIFO¶

The FIFO example is available in the OMNeT++ installation under the directory samples/fifo. The FIFO is an important example because it uses a queue, which is an essential part of discrete event simulations and introduces the notion of message reuses.

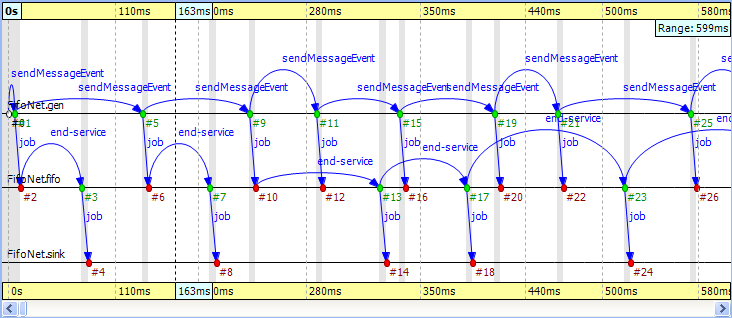

When you start the simulation, choose the configuration ‘low job arrival rate’ and let it run for a while. In Fig. 141, you can see three modules: a source, a queue, and a sink. The simulation starts with a self-message, and then the generator sends the first message to the queue at event #1. It is immediately obvious that the message stays in the queue for a certain period of time, between event #2 and event #3.

Finally, the message is sent to the sink, where it is deleted at event #4.

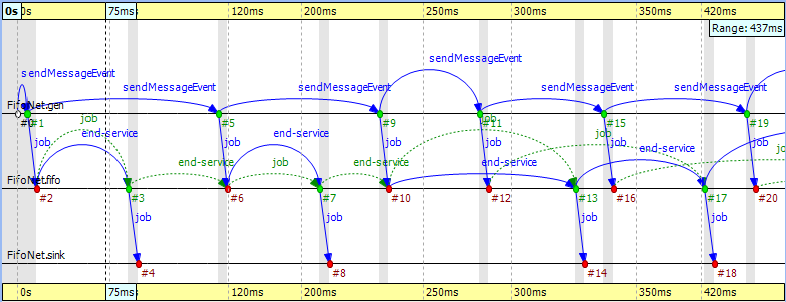

Something interesting happens at event #12, where the incoming message suddenly disappears. It seems like the queue does not send the message out. Actually, what happens is that the queue enqueues the job because it is busy serving the message received at event #10. Since this queue is a FIFO, it will send out the first message at event #13. To see how this happens, turn on Show Reuse Messages from the context menu; the result is shown in Fig. 142. It displays a couple of green dotted arrows, one of which starts at event #12 and arrives at event #17. This is a reuse arrow; it means that the message sent out from the queue at event #17 is the same as the one received and enqueued at event #12. Note that the service of this message actually begins at event #13, which is the moment that the queue becomes free after it completes the job received at event #10.

Another type of message reuse is portrayed with the arrow from event #3 to event #6. The arrow shows that the queue reuses the same timer message instead of creating a new one each time.

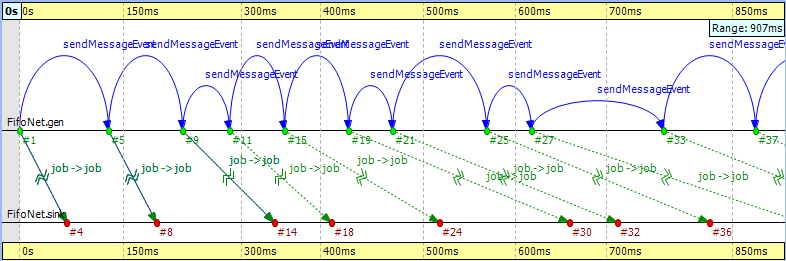

The last part of this example is about filtering out the queue from the chart. Open the Filter Dialog, select sink and source on the Module filter ‣ by NED type panel, and apply the change in settings. If you look at the result in Fig. 143, you will see zigzag arrows going from the ‘source’ to the ‘sink.’ These arrows show that a message is being sent through the queue from ‘source’ to ‘sink.’ The first two arrows do not overlap in simulation time, which means the queue did not have more than one message during that time. The third and fourth arrows do overlap because the fourth job reached the queue while it was busy with the third one. Scrolling forward, you can find other places where the queue becomes empty and the arrows do not overlap.

Routing¶

The Routing example is available in the OMNeT++ installation under the directory samples/routing. The predefined configuration called ‘Net10’ specifies a network with 10 nodes, with each node having an application, a few queues, and a routing module inside. Three preselected nodes, namely the node ‘1,’ ‘6,’ and ‘8,’ are destinations, while all nodes are message sources. The routing module uses the shortest path algorithm to find the route to the destination. The goal of this example is to create a sequence chart that shows messages traveling simultaneously from multiple sources to their destinations.

Since we do not care about the details regarding what happens within nodes, we can simply turn on filtering for the NED type node.Node. The chart will have 10 axes, with each axis drawn as two parallel solid black lines close to each other. These are the compound modules that represent the nodes in the network. So far, events could be directly drawn on the simple module’s axis where they occurred, but now they will be drawn on the compound module’s axis of their ancestor.

To reduce clutter, the chart will automatically omit events that are internal to a compound module. An event is internal to a compound module if it only processes a message from, and sends out messages to, other modules inside the compound module.

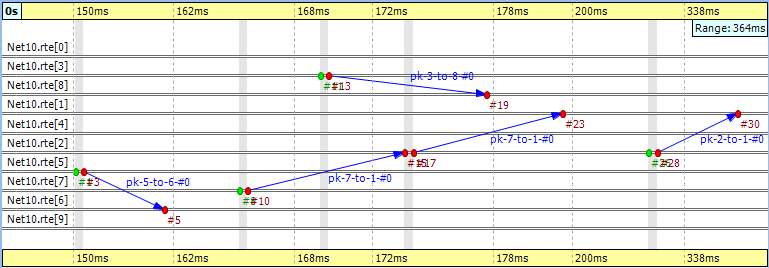

If you look at Fig. 145, you will see a message going from node ‘7’ at event #10 to node ‘1’ at event #23. This message stays in node ‘2’ between event #15 and event #17. The gray background area between them means that zero simulation time has elapsed (i.e., the model does not account for processing time inside the network nodes).

This example also demonstrates message detail recording configured by

eventlog-message-detail-pattern = Packet:declaredOn(Packet)

in the INI file. The example in Fig. 146 shows the tooltip presented for the second message send between event #17 and event #23.

It is very easy to find another message on the chart that goes through the network parallel in simulation time. The one sent from node ‘3’ at event #13 to node ‘8’ arriving at event #19 is such a message.

Wireless¶

The Wireless example is available in the INET Framework under the directory examples/adhoc/ieee80211. The predefined configuration called ‘Config1’ specifies two mobile hosts moving around on the playground and communicating via the IEEE 802.11 wireless protocol. The network devices are configured for ad-hoc mode, and the transmitter power is set so that hosts can move out of range. One of the hosts is continuously pinging the other.

In this section, we will explore the protocol’s MAC layer using two sequence charts. The first chart will show a successful ping message being sent through the wireless channel. The second chart will show ping messages getting lost and being continuously resent.

We would also like to record some message details during the simulation. To perform that function, comment out the following line from omnetpp.ini:

eventlog-message-detail-pattern = *:(not declaredOn(cMessage) and not declaredOn(cNamedObject) and not declaredOn(cObject))

To generate the eventlog file, start the simulation environment and choose the configuration ‘host1 pinging host0.’ Run the simulation in fast mode until event #5000.

Preparing the Result¶

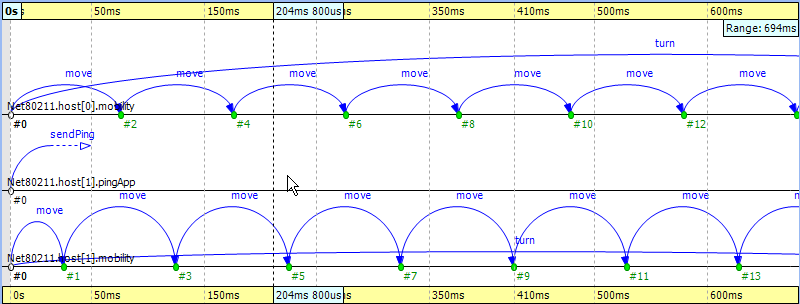

When you open the Sequence Chart, it will show a couple of self-messages named ‘move’ being scheduled regularly. These are self-messages that control the movement of the hosts on the playground. There is an axis labeled ‘pingApp,’ which starts with a ‘sendPing’ message that is processed in an event far away on the chart. This is indicated by a split arrow.

You might notice that there are only three axes in Fig. 147, even though the simulation model clearly contains more simple modules. This is because the Sequence Chart displays the first few events by default, and in this scenario, they all happen to be within those modules. If you scroll forward or zoom out, new axes will be added automatically as needed.

For this example, ignore the ‘move’ messages and focus on the MAC layer instead. To begin with, open the Filter Dialog, select ‘Ieee80211Mac’ and ‘Ieee80211Radio’ on the Module filter ‣ by NED type panel, and apply the selected changes. The chart will have four axes, two for the MAC and two for the radio simple modules.

The next step is to attach vector data to these axes. Open the context menu for each axis by clicking on them one by one, and select the Attach Vector to Axis submenu. Accept the default vector file offered. Then, choose the vector ‘mac:State’ for the MAC modules and ‘mac:RadioState’ for the radio modules. You will have to edit the filter in the vector selection dialog (i.e., delete the last segment) for the radio modules because at the moment, the radio state is recorded by the MAC module, so the default filter will not be right. When this step is completed, the chart should display four thick colored bars as module axes. The colors and labels on the bars specify the state of the corresponding state machine at the given simulation time.

To aid comprehension, you might want to manually reorder the axes, so that the radio modules are put next to each other. Use the button on the toolbar to switch to manual ordering. With a little zooming and scrolling, you should be able to fit the first message exchange between the two hosts into the window.

Successful Ping¶

The first message sent by ‘host1’ is not a ping request but an ARP request. The processing of this message in ‘host0’ generates the corresponding ARP reply. This is shown by the zigzag arrow between event #85 and event #90. The reply goes back to ‘host1,’ which then sends a WLAN acknowledge in return. In this process, ‘host1’ discovers the MAC address of ‘host0’ based on its IP address.

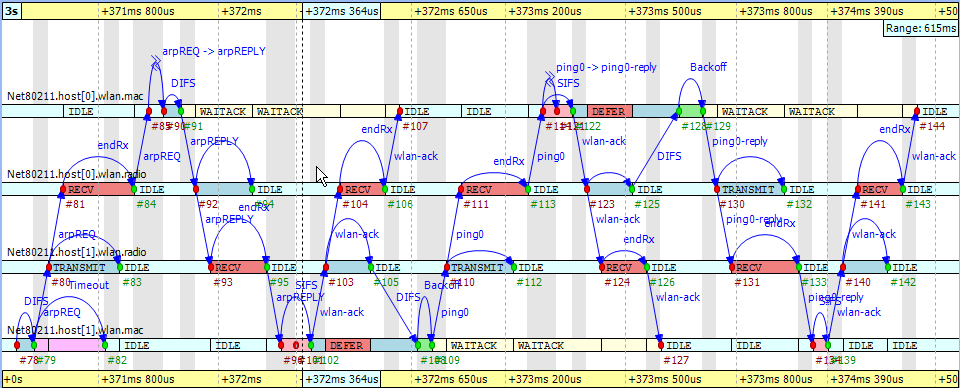

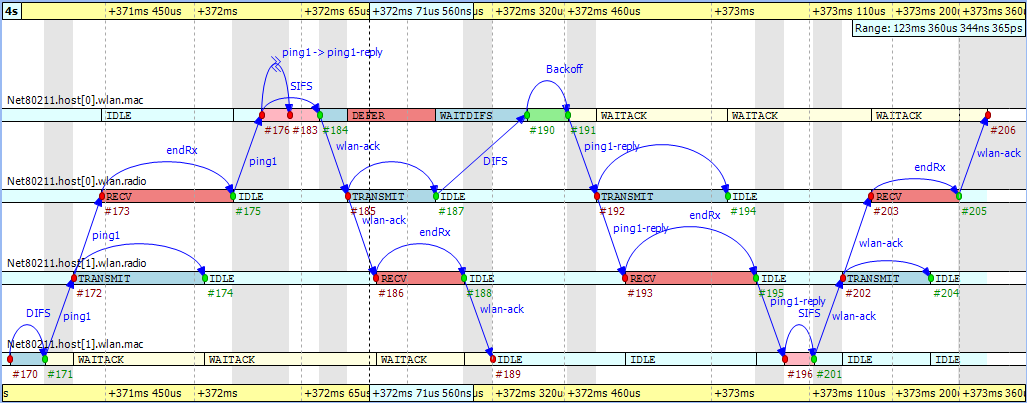

The send procedure for the first ping message starts at event #105 in ‘host1’ and finishes by receiving the acknowledge at event #127. The ping reply send procedure starts at event #125 in ‘host0’ and finishes by receiving the WLAN acknowledge at event #144. If you scroll forward, you can see, as in Fig. 149, the second complete successful ping procedure between event #170 and event #206. To focus on the second successful ping message exchange, open the Filter Dialog and enter these numbers in the range filter.

Timing is critical in a protocol implementation, so we will take a look at it using the Sequence Chart. The first self message represents the fact that the MAC module listens to the radio for a DIFS period before sending the message out. The message send from event #171 to event #172 occurs in zero simulation time as indicated by the gray background. It represents the moment when the MAC module decides to send the ping request down to its radio module. The backoff procedure was skipped for this message because there was no transmission during the DIFS period. If you look at event #172 and event #173, you will see how the message propagates through the air from ‘radio1’ to ‘radio0.’ This finite amount of time is calculated from the physical distance of the two modules and the speed of light. Additionally, by looking at event #172 and event #174, you will notice that the transmission time is not zero. This time interval is calculated from the message’s length and the radio module’s bitrate.

Another interesting fact seen in the figure is that the higher-level protocol layers do not add delay for generating the ping reply message in ‘host0’ between event #176 and event #183. The MAC layer procedure ends with sending back a WLAN acknowledge after waiting a SIFS period.

Finally, you can get a quick overview of the relative timings of the IEEE 802.11 protocol by switching to linear timeline mode. Use the button on the toolbar and notice how the figure changes dramatically. You might need to scroll and zoom in or out to see the details. This shows the usefulness of the nonlinear timeline mode.

You can export this sequence chart for documentation purposes using the context menu’s Export to SVG option.

Unsuccessful Ping¶

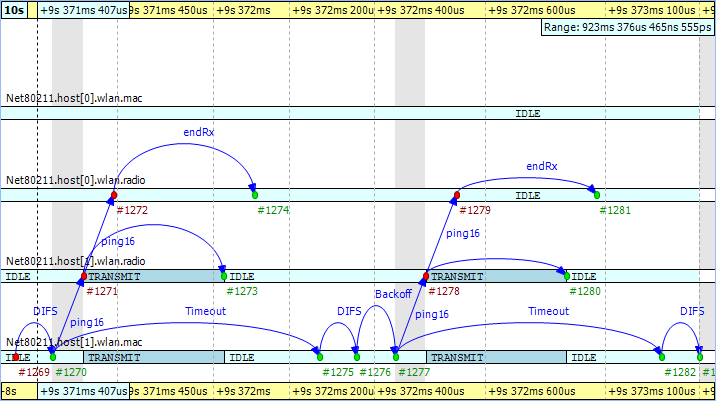

To see how the chart looks when the ping messages get lost in the air, first turn off range filtering. Then, go to event #1269 by selecting the Goto Event option from the Eventlog Table View’s context menu. In Fig. 150, you can see how the receiver radio does not send up the incoming message to its MAC layer due to the signal level being too low. This actually happens at event #1274 in ‘host0.’ Shortly thereafter, the transmitter MAC layer in ‘host1’ receives the timeout message at event #1275 and starts the backoff procedure before resending the very same ping message. This process goes on with statistically increasing backoff time intervals until event #1317. Finally, the maximum number of retries is reached, and the message is dropped.

The chart also shows that during the unsuccessful ping period, there are no events occurring in the MAC layer of ‘host0,’ and it is continuously in the ‘IDLE’ state.
